In the critical care unit, the HAMILTON-G5 ventilator is your faithful ally for all patient populations, from neonates to adults. Thanks to its multitude of high-end features, it can support your patients for all their ventilation needs, from high flow oxygen therapy to invasive ventilation. And when the time comes, advanced modes such as ASV can even help you wean them (
With the wide choice of optional features on the HAMILTON-G5, you can create your own custom-made solution for providing individualized lung-protective ventilation to your patients:

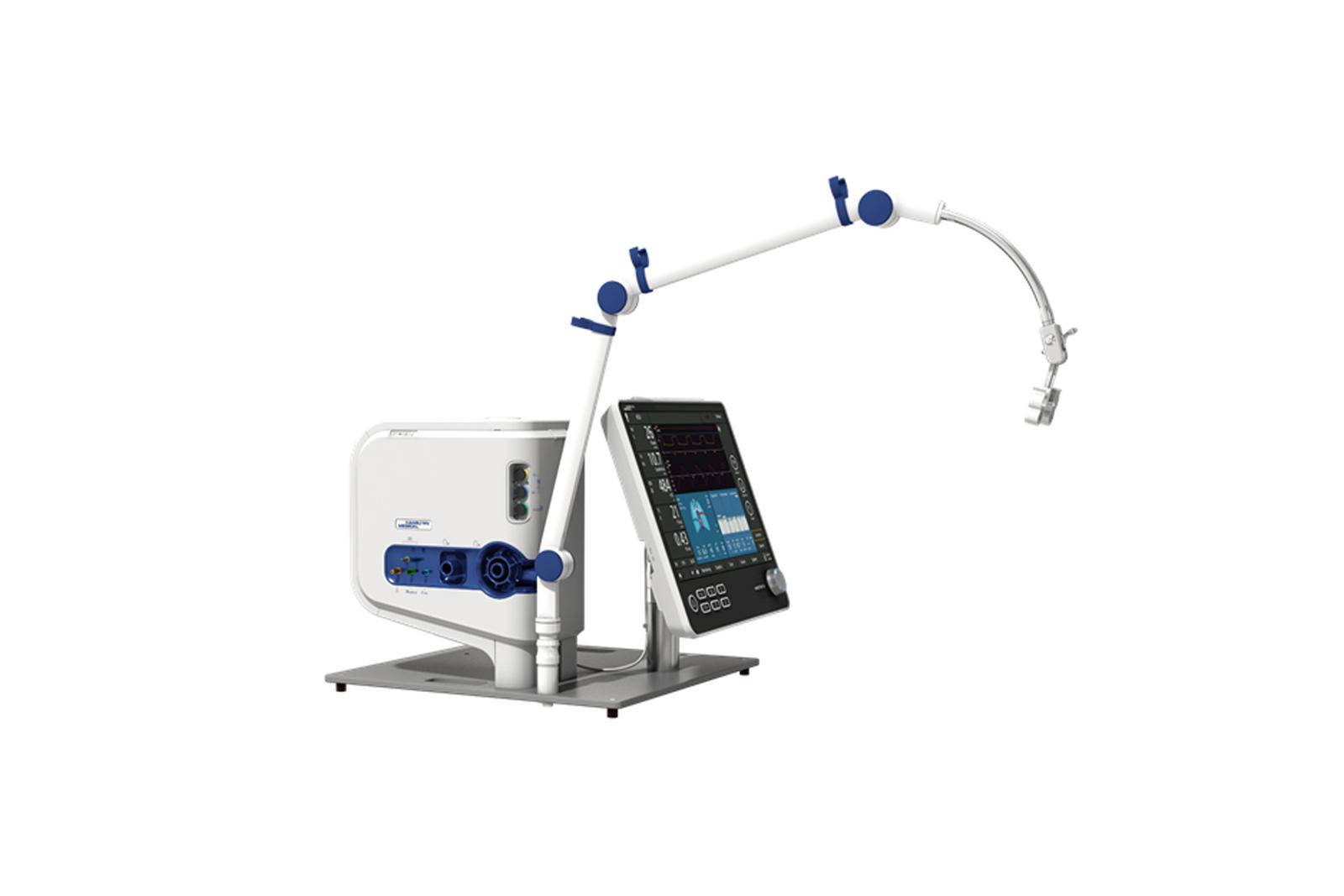

This one is as flexible as they come! You can put it on a trolley, attach it to a pendant, take off its head or position it on a shelf.
The unique ventilator connectivity option enables you to operate the HAMILTON-H900 humidifier directly from the ventilator's display. You can access all the controls, monitoring parameters, and alarms, and adjust them as needed.
The humidifier can also select the humidification mode automatically (invasive, noninvasive, or high flow) based on the selected ventilation mode.
Discover the HAMILTON-G5 from every angle and click on the hotspots to learn more.
| Patient groups | Adult/Ped, Neonatal |
|---|---|
| Dimensions (W x D x H) | 500 x 450 x 440 mm (ventilation unit) 580 x 600 x 1300 mm (min. monitor mounted on rail) 580 x 600 x 1500 mm (max. monitor mounted on rail) |
| Weight | Ventilation unit, monitor, and shelf mount: 38 kg (83.8 lb) 57 kg (125.6 lb) with standard trolley, monitor, and ventilation unit |
| Monitor size and resolution | 15 in (381 mm) diagonal 1024 x 768 pixels |
| Detachable monitor | |
| Battery operating time | 1 h with one battery |
| Hot-swappable battery | |
| Air supply | Requires compressed air |
| O2 connector | DISS (CGA 1240) or NIST (optional), NF (optional) |
| Connectivity | CompactFlash, USB, DVI, COM (RS-232), Special interface |
| Loudness | 38.6 dB in normal operation |
| Volume controlled, flow controlled | |
|---|---|
| Volume targeted, adaptive pressure controlled | |
| Intelligent ventilation | ASV® |
| Noninvasive ventilation | |
| High flow | |
| Visualization of lung mechanics (Dynamic Lung) | |
|---|---|
| Visualization of the patient’s ventilator dependence | |
| Esophageal pressure measurement | |
| Capnography | |
| SpO2 monitoring |
| Recruitability assessment and lung recruitment (P/V Tool Pro) | |
|---|---|
| Patient-ventilator synchronization (IntelliSync+) | |
| CPR ventilation | |
| Hamilton Connect Module | |
| Hamilton Connect App |
| Remote connection to HAMILTON-H900 humidifier | |
|---|---|
| Integrated IntelliCuff cuff pressure controller | |
| Integrated pneumatic nebulizer | |
| Integrated Aerogen nebulizer | |
| Compatibility with Sedaconda ACD-S anesthetic delivery system |
What I like the most about the HAMILTON-G5s is probably the monitoring parameters and the ability to trend those in real time and up to 72 hours. I have been able to use that on a disease-specific basis and trend data that I couldn’t do before.
RRT, Adult Clinical Education Coordinator
University Medical Center, Lubbock (TX), USA
The HAMILTON-G5 has given us a lot of different options and features all of which are in great need in the NICU.
Respiratory Therapy Clinical Supervisor
Florida Hospital for Children, Orlando (FL), USA
The ventilation mode ASV continuously adjusts the respiratory rate, tidal volume, and inspiratory time breath by breath depending on the patient’s lung mechanics and effort - 24 hours a day, from intubation to extubation.
Continuously analyzing waveform shapes hundreds of times per second allows IntelliSync+ to detect patient efforts and cycling immediately, and initiate inspiration and expiration in real-time.
IntelliSync+ applies to invasive and noninvasive ventilation, regardless of the ventilation mode.
You can use the P/V Tool Pro to assess lung recruitability and determine the recruitment strategy.
Additionally, you can use it to perform a sustained inflation recruitment maneuver and measure the increase in lung volume.
Transpulmonary pressure measurement allows optimization of PEEP, tidal volume, and inspiratory pressure.
Use it in combination with the P/V Tool Pro to assess lung recruitability and perform recruitment maneuvers.
The unique ventilator connectivity option enables you to operate the HAMILTON-H900 humidifier (
The humidifier can also select the humidification mode automatically (invasive, noninvasive, or high flow) based on the selected ventilation mode.
The integrated pneumatic nebulizer is fully synchronized with the timing of inspiration and expiration.
An integrated, synchronized Aerogen nebulizer is available as an option (
The delivery of a fine mist of drug aerosol particles helps you reverse bronchospasm, improve ventilation efficiency, and reduce hypercapnia (
IntelliCuff continuously measures and automatically maintains the user-set cuff pressure of an endotracheal or tracheostomy tube in real-time (
High flow nasal cannula therapy is available as an option on all our ventilators. In just a few steps, you can change the interface and use the same device and breathing circuit to accommodate your patient’s therapy needs.
Proximal flow and CO2 measurement enables our ventilators to perform up-to-date volumetric capnography, which provides an important basis for the assessment of ventilation quality and metabolic activity.
The Vent Status panel displays six parameters related to the patient’s ventilator dependence, including oxygenation, CO2 elimination, and patient activity.
A floating indicator moving up and down within each column shows the current value for a given parameter.

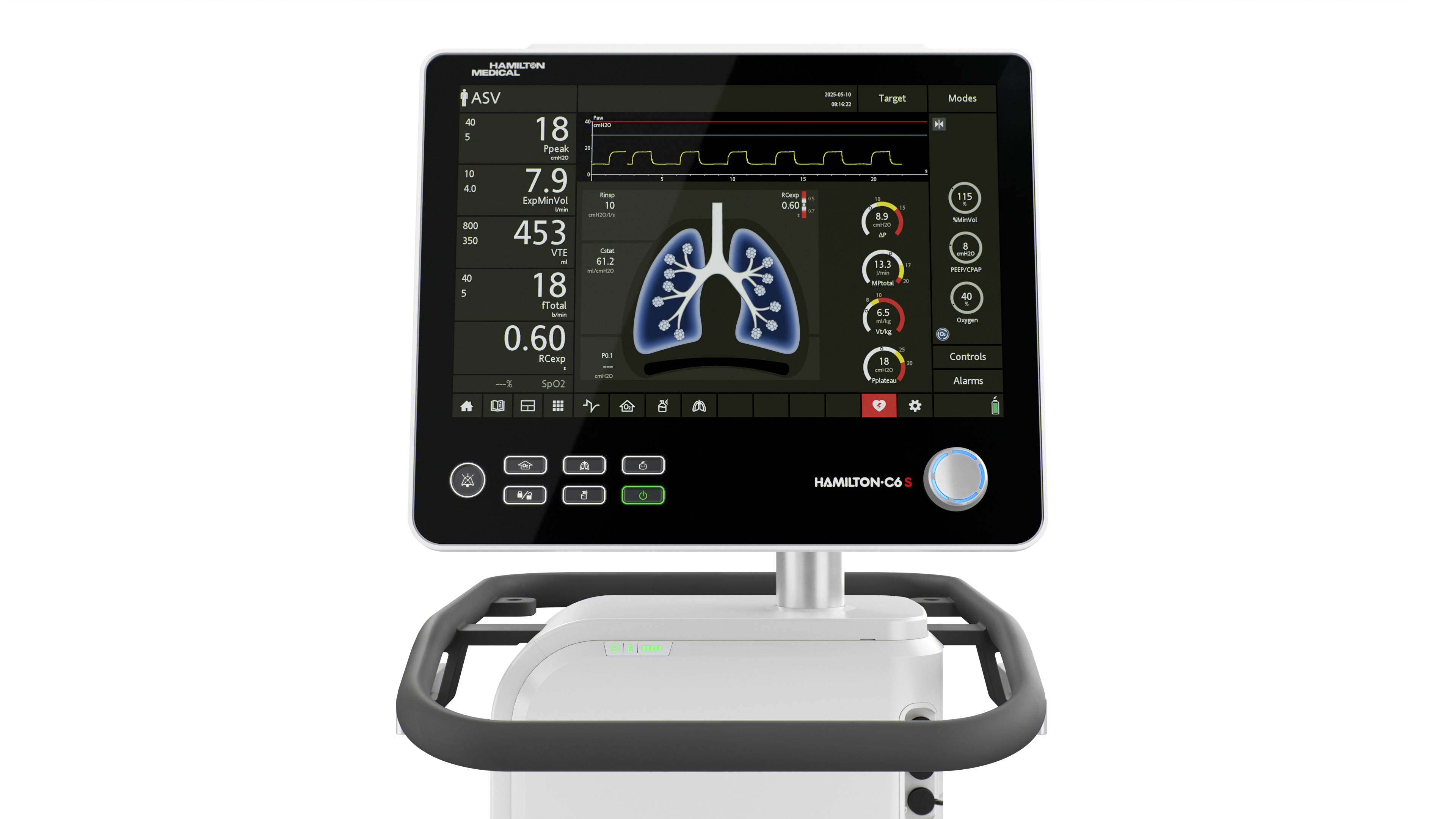

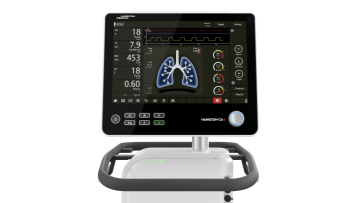

The Dynamic Lung panel shows you a graphic real-time representation of the following important monitoring data:
The ventilator can display a dynamic loop based on a selected combination of monitored parameters. With the trend function, you can see trending information displayed for the monitoring parameters and time frame of your choice.
The device continually stores the monitored parameters in its memory, even when in Standby.
The SpO2 option offers integrated noninvasive SpO2 measurement with the data displayed conveniently on your ventilator.
We also offer a comprehensive portfolio of SpO2 sensors.
The noninvasive ventilation modes deliver pressure-supported, flow-cycled spontaneous breaths (NIV and NIV-ST mode) and pressure-controlled, time-cycled mandatory breaths (NIV-ST).

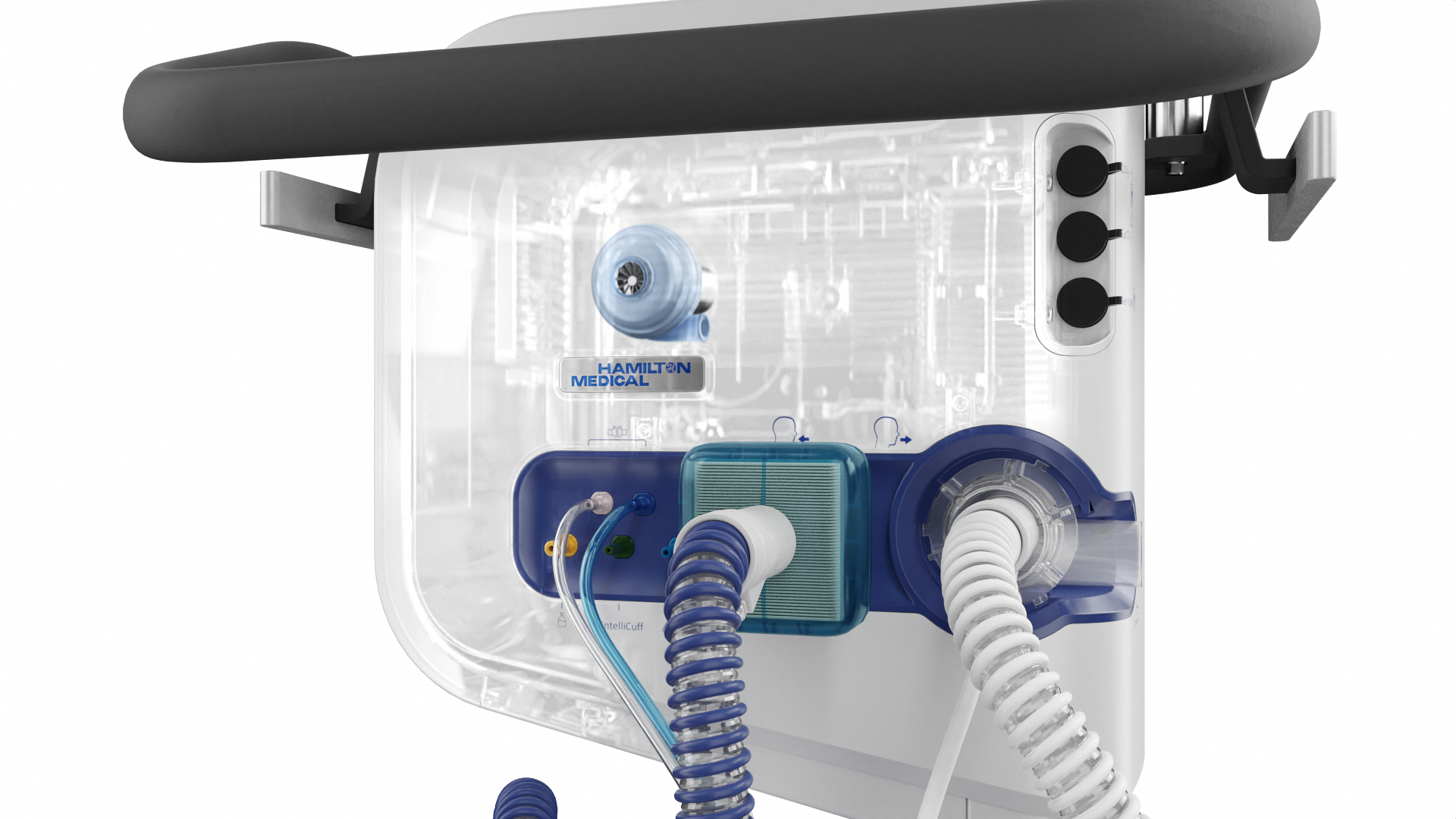

Compared to ventilators using compressed air, our turbine-driven ventilators are capable of providing higher peak flow rates. This guarantees optimal performance even with large leaks.
The nCPAP modes are designed so you only need to set the desired CPAP pressure. The flow is subsequently adjusted based on patient conditions and potential leaks. This prevents unintended peak pressures, guarantees highly efficient leak compensation, and helps to reduce oxygen consumption. Flow adjustment occurs very rapidly due to the high sensitivity of the pressure measurement.
Heliox therapy can help you successfully reduce the patient’s work of breathing while treating the cause of upper airway obstructions (
Our preassembled breathing circuit sets include the essential consumables to operate the ventilator, conveniently packaged in one single bag.
All our essential consumables are specially developed for Hamilton Medical ventilators with guaranteed manufacturer quality.
To manage ventilation you usually have to set multiple parameters, such as pressure, volume, inspiratory and expiratory triggers, cuff pressure, and more. And each time your patient's condition changes, you have to make one or even several readjustments.
To simplify this process and reduce the knob-turning, we have created a range of solutions:
Adaptive Support Ventilation (ASV) is a ventilation mode that provides continuous adaptation of respiratory rate, tidal volume, and inspiratory time, depending on the patient’s lung mechanics and effort. ASV has been shown to shorten the duration of mechanical ventilation in various patient populations with fewer manual settings (
IntelliSync+ continuously analyzes waveform signals at least one hundred times per second. This enables IntelliSync+ to detect patient efforts immediately and to initiate inspiration and expiration in real-time, thus replacing conventional trigger settings for inspiration and expiration.
Conventional solutions for cuff pressure management require you to monitor and adjust cuff pressure by hand.
IntelliCuff secures your patient’s airway (
We want our ventilator to leave your patient’s side as quickly as possible. That is why we provide you with tools to help you implement your weaning protocol.
These include visual aids and ventilation modes designed to encourage spontaneous breathing.
Our online Academy offers easy-to-follow learning paths to familiarize you with Hamilton Medical products and technologies as quickly as possible.
We are constantly working on further evolving our products. New features are added and existing features improved to ensure you always have access to the latest ventilation technology over your ventilator’s lifetime.

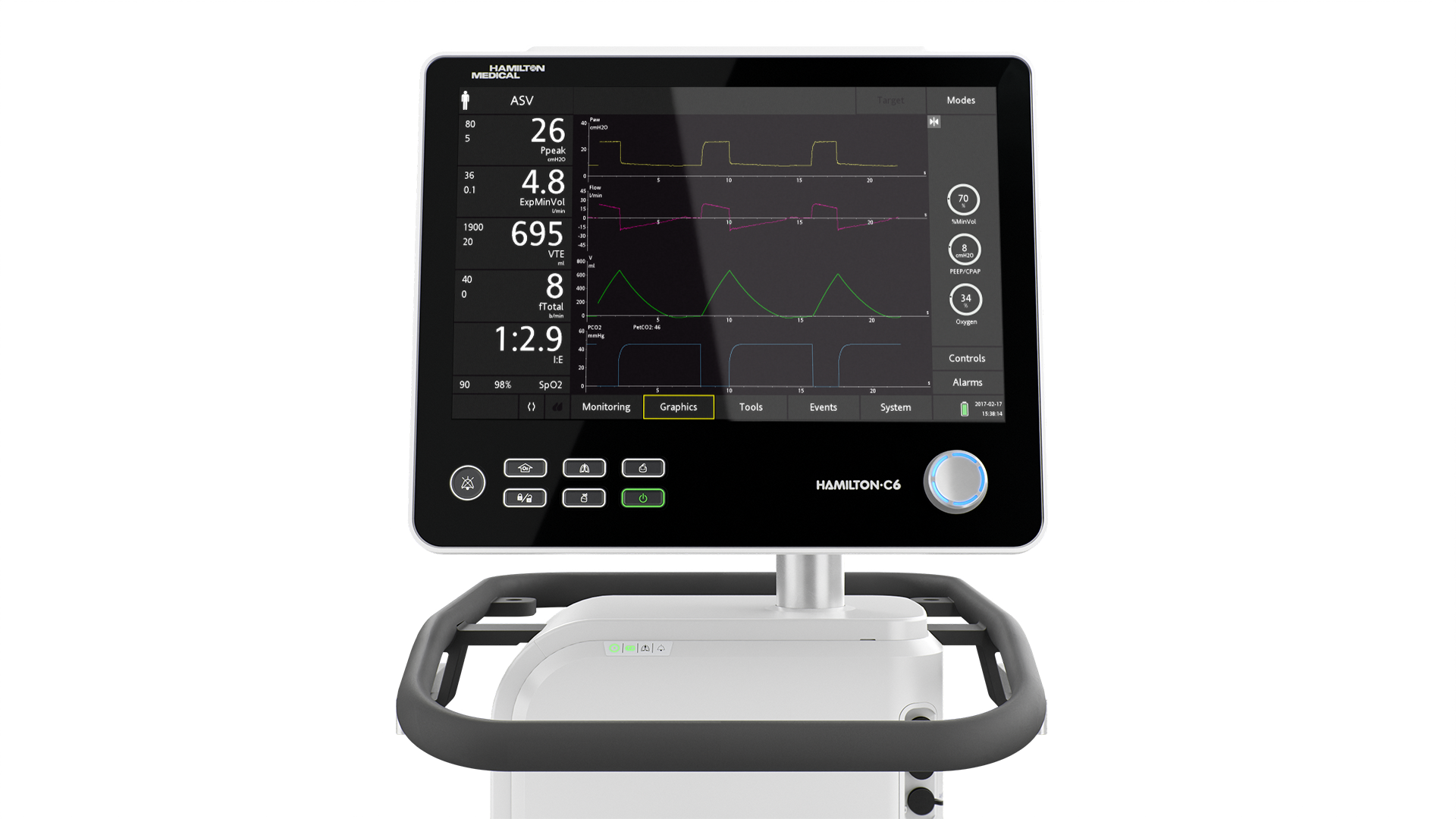

Whether it is in the ICU, in the MRI suite, or during transport, the user interface of all Hamilton Medical ventilators works in the same way.
Our Ventilation Cockpit integrates complex data into intuitive visualizations.
We develop our accessories for the highest possible patient safety and ease of use in mind. Whenever possible, we integrate them with our ventilators to simplify operation of the complete ventilator system.
