Our transport specialist! From neonates to adults
Communication board options for:
Access respiratory data on your mobile device with the Hamilton Connect App. It also provides tools designed to facilitate and streamline your ventilation workflow.

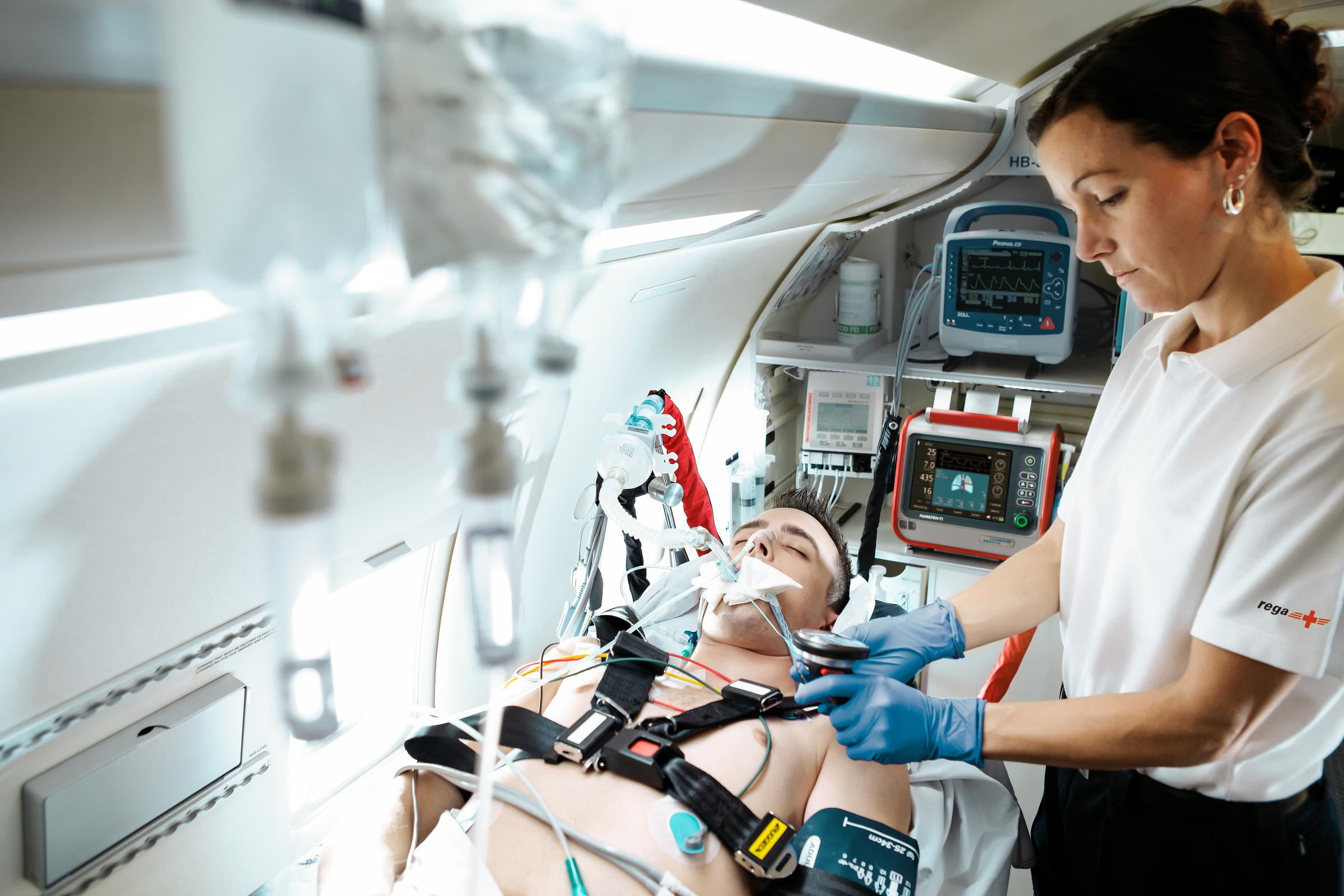

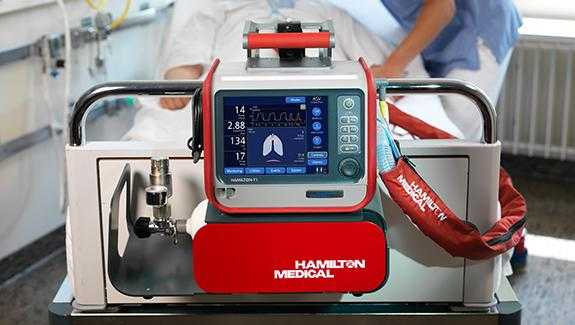

Various solutions are available for all the main types of helicopters and ambulances, as well as for hospital beds, stretchers, surfaces, shelves, poles, rails, and ceilings.

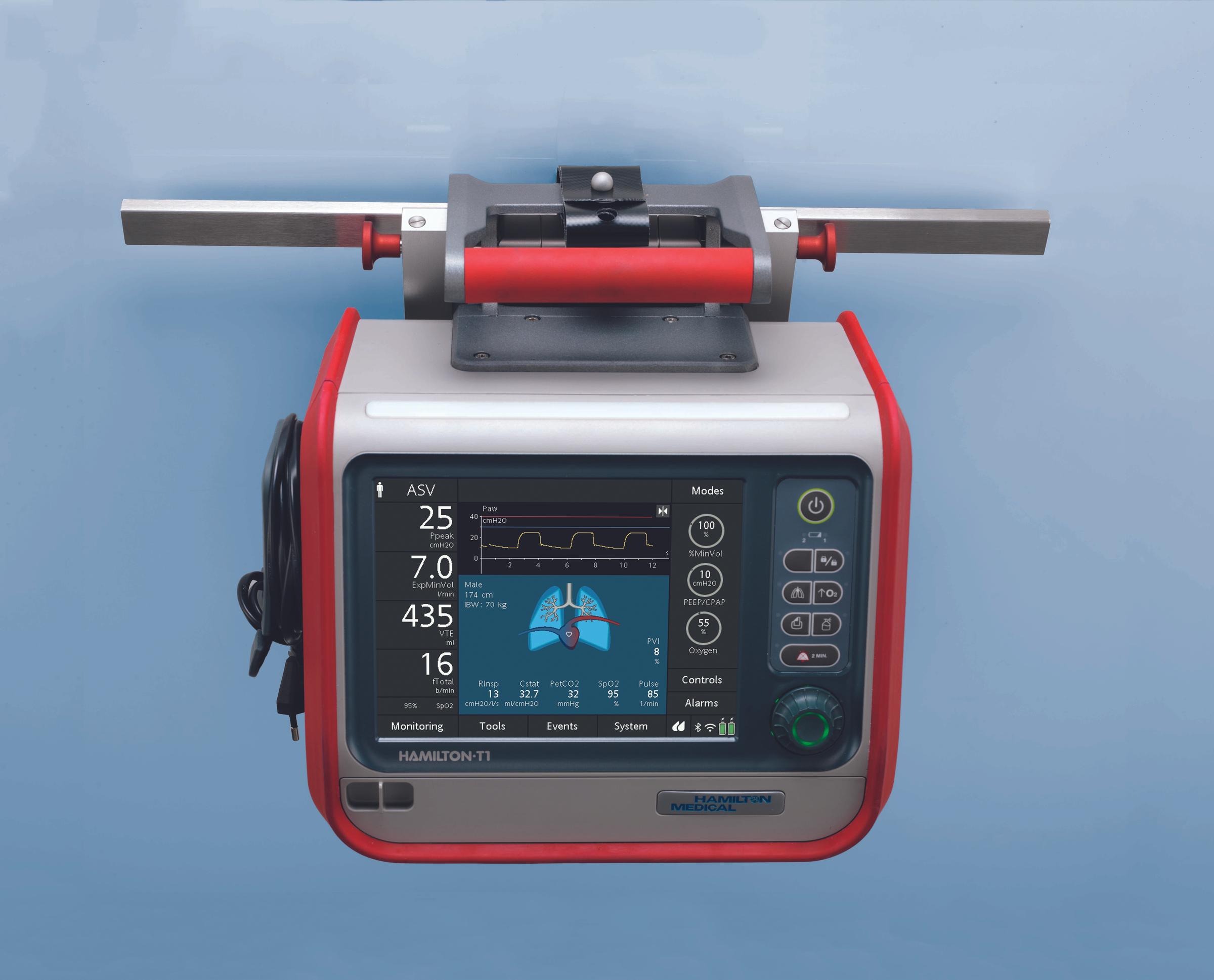

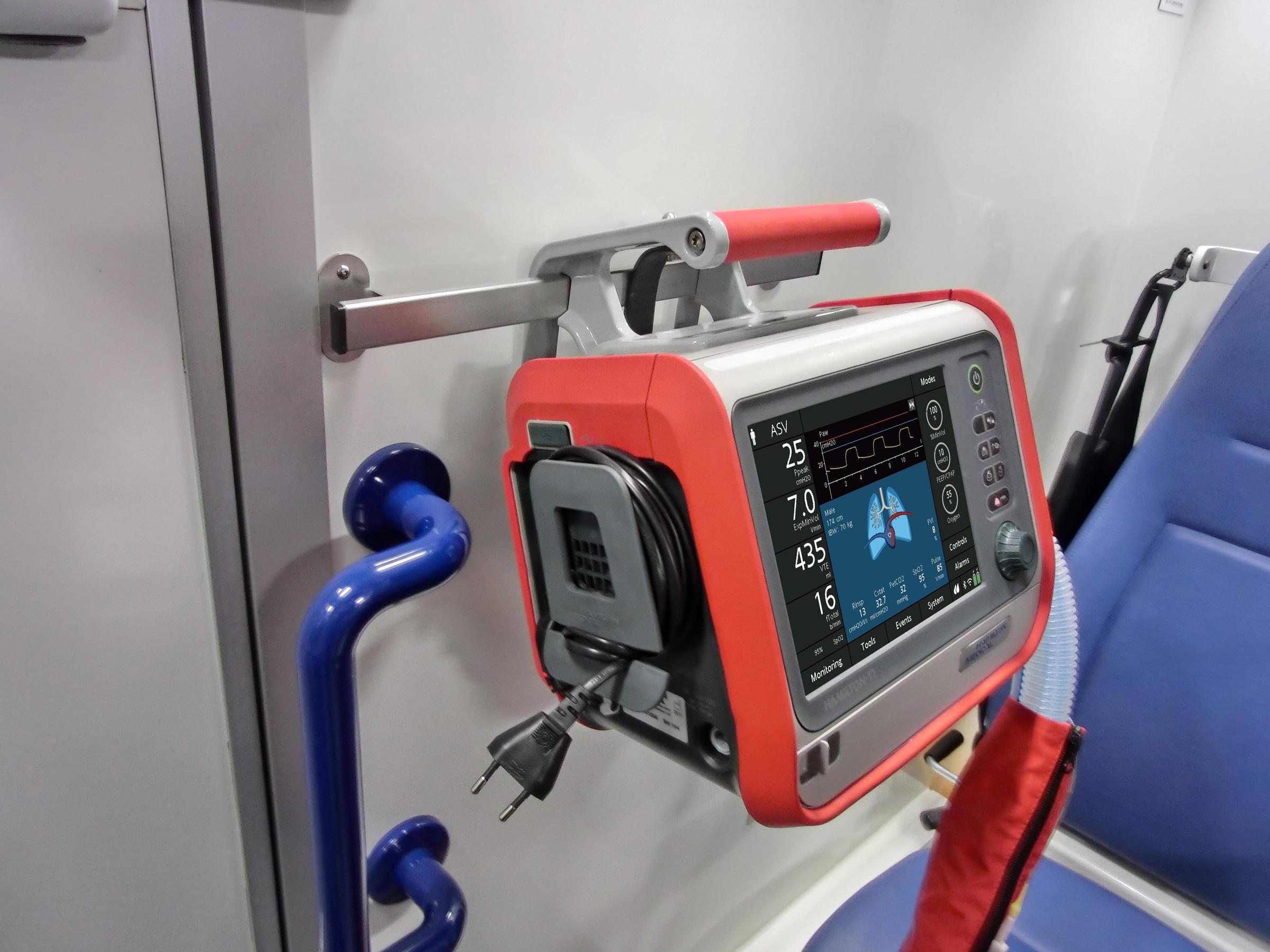

With four different types of handles and multiple mounts, you can adapt the HAMILTON-T1 to suit your specific environment and situation.
CPR ventilation adapts the ventilation settings if you have to perform CPR. It shows the main monitoring parameters and curves relevant to the situation, and supports your workflow with quick access to preconfigurable settings, adequate alarm and trigger adjustment, and a CPR-timer display.
According to the HOVER survey (
Ventilators suitable for pandemics and mass casualties must be versatile and meet various requirements. The HAMILTON-T1 meets or exceeds all requirements in the AARC Guidelines for Acquisition of Ventilators to Meet Demands for Pandemic Flu and Mass Casualty Incidents (
Discover the HAMILTON-T1 from every angle and click on the hotspots to learn more.
|Patient groups||Adult/Ped, Neonatal|
|Dimensions (W x D x H)||320 x 220 x 270 mm (ventilation unit)
630 x 630 x 1380 mm (without handle)
630 x 630 x 1433 mm (with handle)
|Weight||6.5 kg (14.3 lb)
18.5 kg (40.8 lb) with trolley
|Monitor size and resolution||8.4 in (214 mm) diagonal
640 x 480 pixels
|Battery operating time||4 h with one battery
8 h with two batteries
|Air supply||Integrated turbine|
|O2 connector||DISS (CGA 1240) or NIST|
|Connectivity||CO2/Nurse Call/COM1, CO2/SpO2/COM1, CO2/SpO2/Humidifier & COM1, USB port, RJ-45 Ethernet port|
|Loudness||43 dB in normal operation|
|Volume controlled, flow controlled|
|Volume targeted, adaptive pressure controlled|
|Visualization of lung mechanics (Dynamic Lung)|
|Visualization of the patient’s ventilator dependence|
|Esophageal pressure measurement|
|Recruitability assessment and lung recruitment (P/V Tool Pro)|
|Patient-ventilator synchronization (IntelliSync+)|
|Hamilton Connect Module|
|Hamilton Connect App|
|Remote connection to HAMILTON-H900 humidifier|
|Integrated IntelliCuff cuff pressure controller|
|Integrated pneumatic nebulizer|
|Integrated Aerogen nebulizer|
|Compatibility with Sedaconda ACD-S anesthetic delivery system|
The ventilator for armed forces
Exposure to extreme conditions means a ventilator for armed forces has to meet very special requirements. That is where the HAMILTON-T1 Military takes over.
The ventilation mode ASV continuously adjusts the respiratory rate, tidal volume, and inspiratory time breath by breath depending on the patient’s lung mechanics and effort - 24 hours a day, from intubation to extubation.
The integrated pneumatic nebulizer is fully synchronized with the timing of inspiration and expiration.
An integrated, synchronized Aerogen nebulizer is available as an option (
The delivery of a fine mist of drug aerosol particles helps you reverse bronchospasm, improve ventilation efficiency, and reduce hypercapnia (
High flow nasal cannula therapy is available as an option on all our ventilators. In just a few steps, you can change the interface and use the same device and breathing circuit to accommodate your patient’s therapy needs.
CPR ventilation adapts the ventilator settings during rescucitation. It supports the CPR workflow with quick access to preconfigurable settings, adequate alarm and trigger adjustment, and CPR-timer display.
The main monitoring parameters and curves relevant to CPR ventilation are also displayed.
Built to meet the needs of modern healthcare providers, the Hamilton Connect App (
All you need is a mobile device and a Hamilton Medical ventilator with the Hamilton Connect Module.
Proximal flow and CO2 measurement enables our ventilators to perform up-to-date volumetric capnography, which provides an important basis for the assessment of ventilation quality and metabolic activity.
The Vent Status panel displays six parameters related to the patient’s ventilator dependence, including oxygenation, CO2 elimination, and patient activity.
A floating indicator moving up and down within each column shows the current value for a given parameter.
The unique ventilator connectivity option enables you to operate the HAMILTON-H900 humidifier (
The humidifier can also select the humidification mode automatically (invasive, noninvasive, or high flow) based on the selected ventilation mode.
The Speak Valve option gives tracheostomized patients a voice, and allows them to swallow even while receiving respiratory support.
The ventilator's monitoring, triggering, and alarm management are adjusted for compatibility with speaking valves in pressure-controlled modes (PCV+, SPONT, PSIMV+).
The Dynamic Lung panel shows you a graphic real-time representation of the following important monitoring data:
The ventilator can display a dynamic loop based on a selected combination of monitored parameters. With the trend function, you can see trending information displayed for the monitoring parameters and time frame of your choice.
The device continually stores the monitored parameters in its memory, even when in Standby.
The SpO2 option offers integrated noninvasive SpO2 measurement with the data displayed conveniently on your ventilator.
We also offer a comprehensive portfolio of SpO2 sensors.
The noninvasive ventilation modes deliver pressure-supported, flow-cycled spontaneous breaths (NIV and NIV-ST mode) and pressure-controlled, time-cycled mandatory breaths (NIV-ST).
Compared to ventilators using compressed air, our turbine-driven ventilators are capable of providing higher peak flow rates. This guarantees optimal performance even with large leaks.
The nCPAP modes are designed so you only need to set the desired CPAP pressure. The flow is subsequently adjusted based on patient conditions and potential leaks. This prevents unintended peak pressures, guarantees highly efficient leak compensation, and helps to reduce oxygen consumption. Flow adjustment occurs very rapidly due to the high sensitivity of the pressure measurement.
Salt Lake City (UT), USA
Intermountain Life Flight is Utah’s leading air ambulance service. Since starting the program in 1978, we have stayed true to our commitment of providing exceptional patient care via helicopter, fixed wing, and ground ambulance.
Swiss Air-Rescue, is a non-profit private foundation for air rescue in Switzerland, founded in 1952 by members of the Swiss Life Saving Society and based at Zurich Airport.
Bloomington (MN), USA
Life Link III operates nine helicopter bases located throughout Minnesota and Wisconsin. Helicopter and airplane services are available 24/7, providing on-scene emergency response and inter-facility transport.
Our preassembled breathing circuit sets include the essential consumables to operate the ventilator, conveniently packaged in one single bag.
All our essential consumables are specially developed for Hamilton Medical ventilators with guaranteed manufacturer quality.
To manage ventilation you usually have to set multiple parameters, such as pressure, volume, inspiratory and expiratory triggers, cuff pressure, and more. And each time your patient's condition changes, you have to make one or even several readjustments.
To simplify this process and reduce the knob-turning, we have created a range of solutions:
Adaptive Support Ventilation (ASV) is a ventilation mode that provides continuous adaptation of respiratory rate, tidal volume, and inspiratory time, depending on the patient’s lung mechanics and effort. ASV has been shown to shorten the duration of mechanical ventilation in various patient populations with fewer manual settings (
Conventional solutions for cuff pressure management require you to monitor and adjust cuff pressure by hand.
IntelliCuff secures your patient’s airway (
Whenever there is a problem, the ventilator alerts you using the alarm lamp, sound, and message bar.
The on-screen help offers you suggestions on how to resolve the alarm.
Built to meet the needs of modern healthcare providers, the Hamilton Connect App gives you access to respiratory data. It provides you with a solution designed to facilitate and streamline your ventilation workflow. All you need is a mobile device and a Hamilton Medical ventilator with the Hamilton Connect Module (
Our online Academy offers easy-to-follow learning paths to familiarize you with Hamilton Medical products and technologies as quickly as possible.
We use the HAMILTON-T1 for intrahospital transport and transfers to other hospitals. This ensures that the patient receives the same quality of ventilation during transport as at the bedside.
Senior Physician Interdisciplinary Pediatric ICU
Center for Pediatrics and Adolescent Medicine, Mainz, Germany
To be able to use nCPAP with the HAMILTON-T1 is a huge advantage for us. We no longer have to intubate certain babies just for transport.
Life Flight Neonatal RN
Intermountain Life Flight, Salt Lake City (UT), US
The HAMILTON-T1 transport ventilator is very small and compact, but still has all the features of a conventional ICU ventilator.
Chief Nurse Rega Jet
Rega - Swiss Air Rescue Zurich, Switzerland
We are constantly working on further evolving our products. New features are added and existing features improved to ensure you always have access to the latest ventilation technology over your ventilator’s lifetime.
Whether it is in the ICU, in the MRI suite, or during transport, the user interface of all Hamilton Medical ventilators works in the same way.
Our Ventilation Cockpit integrates complex data into intuitive visualizations.
We develop our accessories for the highest possible patient safety and ease of use in mind. Whenever possible, we integrate them with our ventilators to simplify operation of the complete ventilator system.
